HDMI Extender Over Cat6 – 30 Meter Transmission Distance

The HDMI Extender Over Cat6 – 30 Meter Transmission Distance is a cost-effective and reliable solution for extending HDMI video and audio signals well beyond the standard cable length limitations. Designed for high-definition applications, this extender supports Full HD 1080p resolution and transmits over a single Ethernet cable up to 30 meters.

Compatible with CAT-5e, CAT-6, and CAT-6A network cables, this device is versatile across different installation environments. For optimal performance and maximum signal stability—especially near the 30m limit—it is recommended to use CAT-6 or higher.

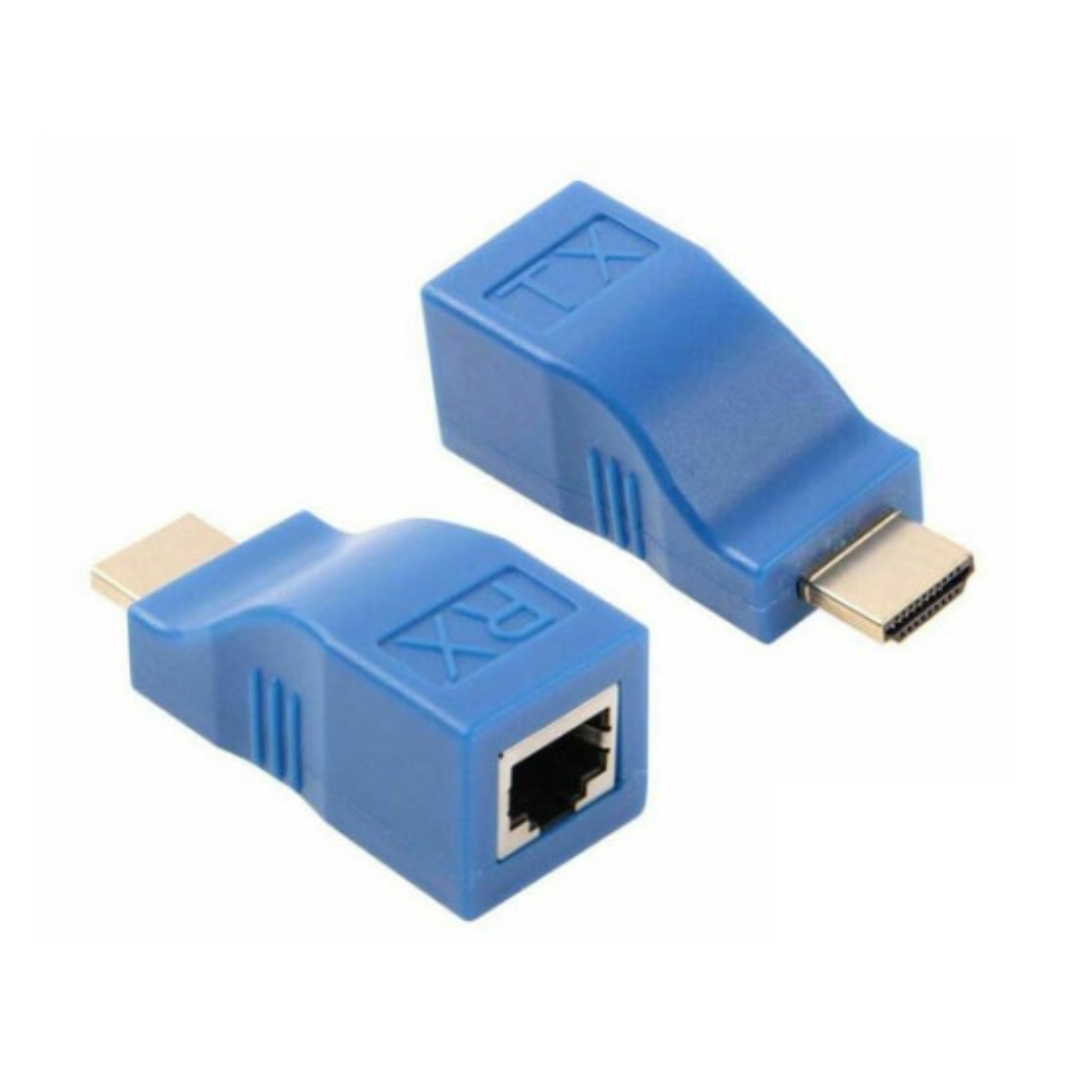

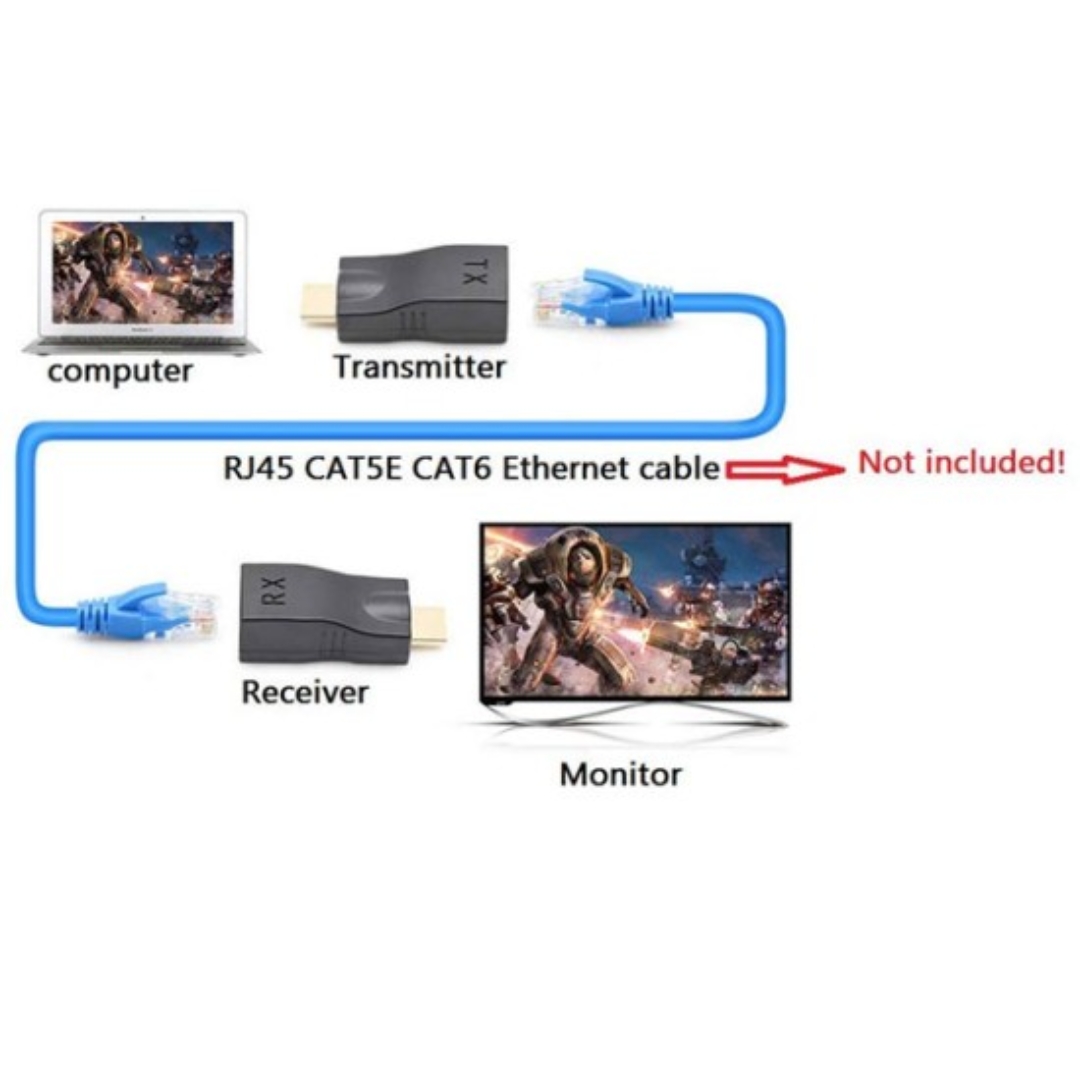

The extender comes with transmitter (TX) and receiver (RX) units. Setup is easy: connect the HDMI source to the transmitter, link the two devices with a network cable, and plug the receiver into your display. No configuration or software is needed.

With plug-and-play functionality and compact form factor, it’s ideal for AV installations in classrooms, conference rooms, showrooms, security monitoring stations, and digital signage networks.

Technical Specifications:

• Transmission Range: Up to 30 meters
• Supported Resolutions: 480p / 720p / 1080p
• Cable Type: CAT-5e, CAT-6, or CAT-6A (CAT-6 recommended)
• Ports: HDMI In/Out, RJ45
• Devices Included: 1x Transmitter, 1x Receiver
• HDMI Version Support: 1.3 or 1.4 (model dependent)
• Power Supply: May be passive or require external DC (based on model)
• Material: ABS or metal housing
• Application Areas: Homes, offices, CCTV setups, digital displays
• Installation: Tool-free, plug-and-play
