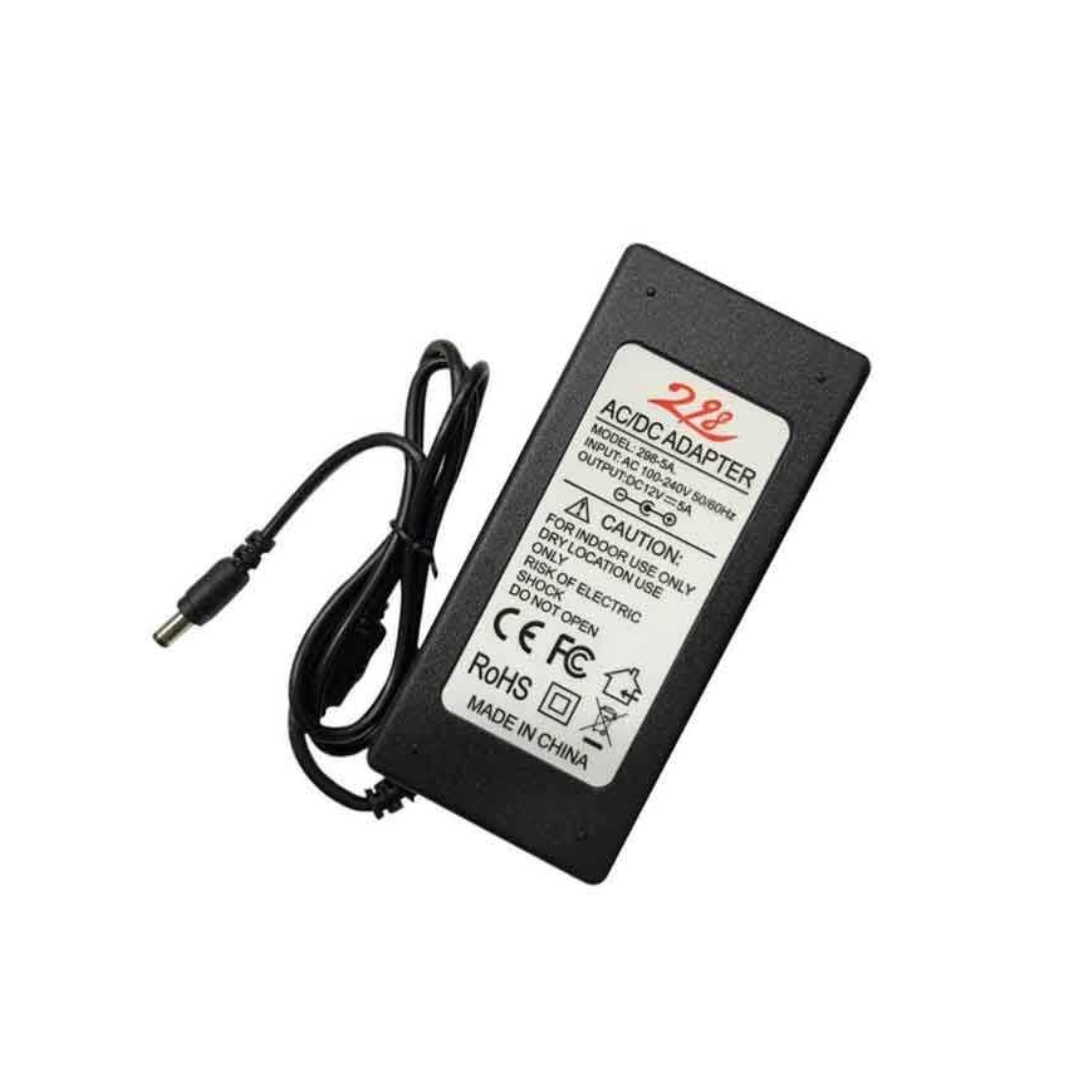

12 V, 5 A (60–90 W) DVR/CCTV Power Adapter – 5.5 × 2.5 mm Barrel Plug

Universal CCTV/DVR power adapter delivering stable 12 V, 5 A output with robust protection features and standard 5.5×2.5 mm DC barrel connector.

Output: 12 V DC, 5 A (60 W typical, supports up to ~90 W)
Standard 5.5 × 2.5 mm DC output plug
Input voltage 100–240 VAC, 50/60 Hz (global compatibility)
Built-in safety: over-voltage, over-current, short-circuit, over-temperature protection
Designed specifically for DVRs, NVRs, CCTV systems, LED strips, routers, and other devices
Ideal for multi-camera setups or recorder units with higher power draw

Add to compare

Add to wishlist

Description

This 12 V/5 A power adapter is designed to provide steady and reliable power to a wide range of devices, including DVRs, NVRs, CCTV systems, LED strips, and network routers. With universal AC input (100–240 VAC), it’s suitable for use worldwide. The standard 5.5 × 2.5 mm DC barrel connector makes it compatible with most surveillance and network equipment.

The internal circuit features multi-layer protection, safeguarding your devices from over-voltage, over-current, short circuits, and overheating. It’s ideal for powering DVR recorders or multi-unit camera systems where a stable current supply is essential.

Compact and reliable, this adapter is a practical solution for both professional installations and home setups.

🔧 Specifications:

Output Voltage: 12 V DC
Output Current: 5 A
Output Power: 60 W nominal (supports up to ~90 W surge)
DC Connector: 5.5 × 2.5 mm barrel plug (center positive)
AC Input Range: 100–240 VAC, 50–60 Hz
Protection: Over-voltage, Over-current, Short-circuit, Over-temperature
Typical Efficiency: ≥ 85%
Operating Temperature: 0 °C to +40 °C
Dimensions: Approx. 110 × 45 × 30 mm
Weight: ~200–350 g (varies by build)
Certifications: Complies with CE / RoHS / FCC / UL (depending on manufacturer)
